Learn about welding processesEVO 0800-TD – Process Module for Quasi-Simultaneous Welding

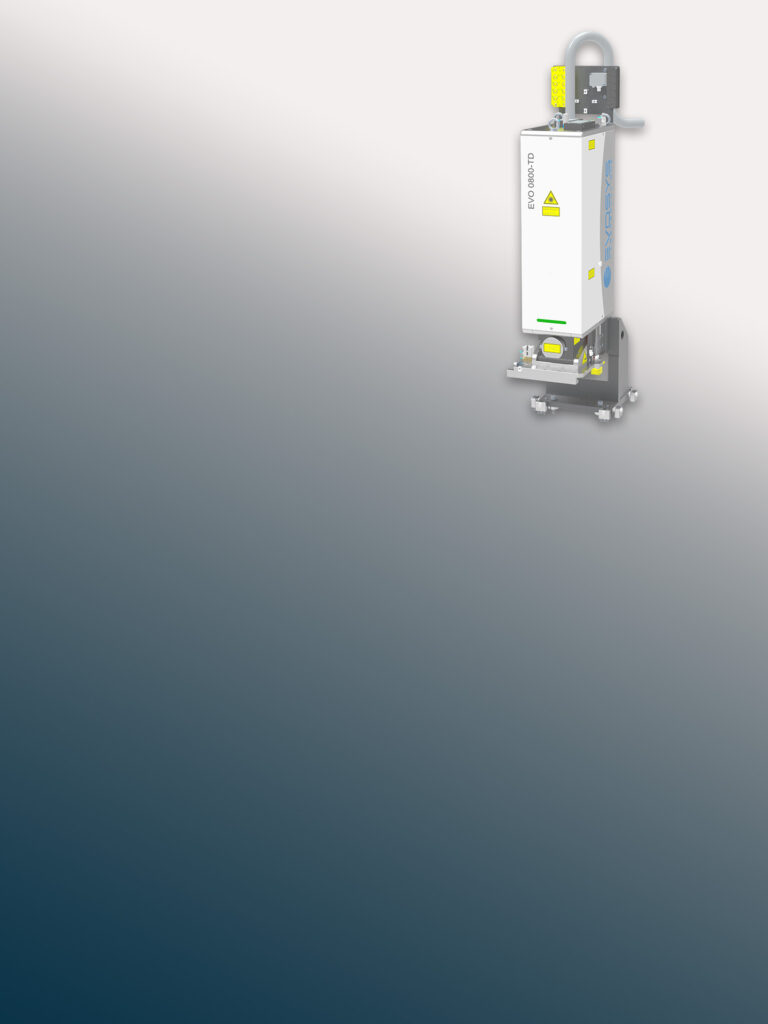

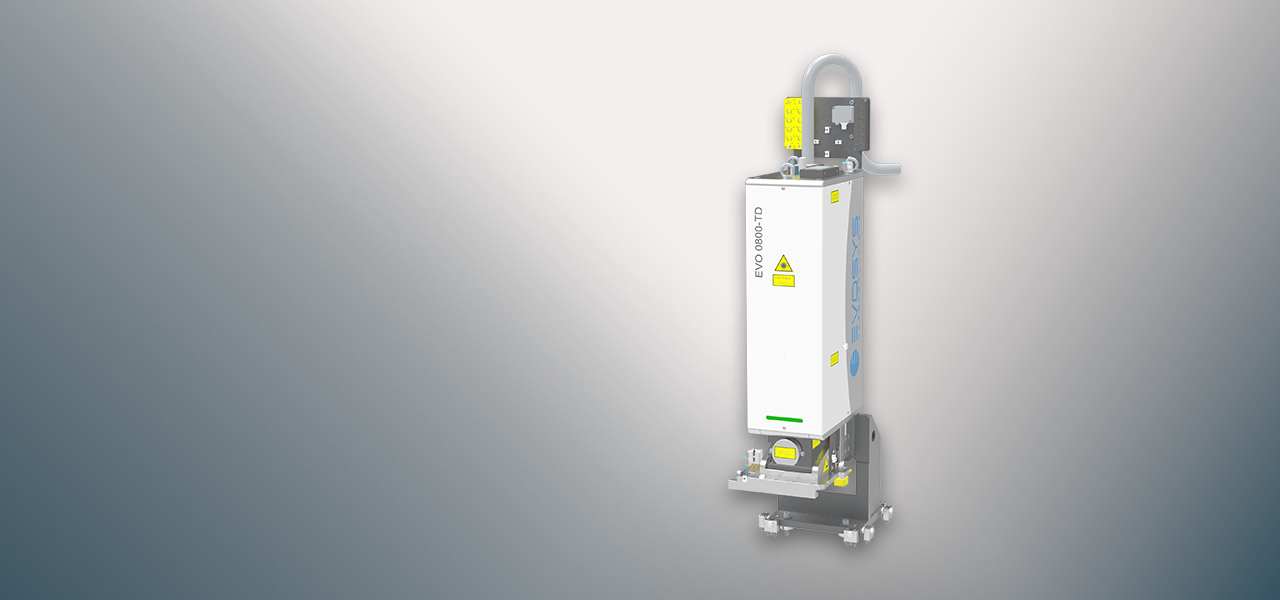

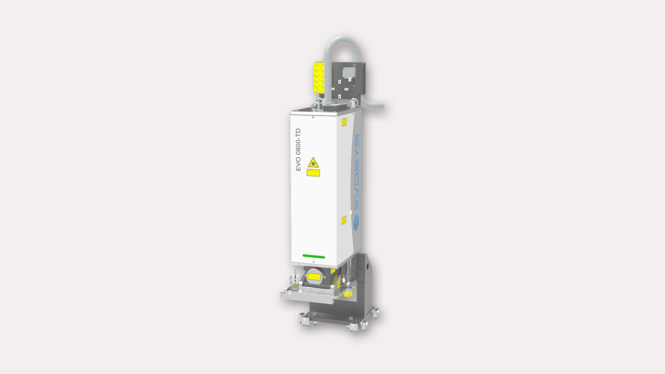

The EVO 0800-TD is a compact process module for contour and quasi-simultaneous laser plastic welding. Equipped with a galvo scanner, it offers a working field of 100 x 100 mm² and an integrated top-down clamping system with an adjustable clamping force from 160 to 1,600 N. With laser power of up to 400 W, the module can be configured to meet different application requirements.
Designed for seamless integration into automated production lines, the EVO 0800-TD combines laser processing and clamping technology in a compact module. Different optical configurations allow the module to be adapted to specific welding requirements. Additional options such as burn detection, Next Generation Optics and tool coding further extend the possibilities for process monitoring and production integration.
Download
Data Sheet
Download documentFrequently Asked Questions
Quasi-simultaneous laser welding uses a rapidly moving laser beam that follows the welding contour multiple times, allowing uniform heating of the entire joint. It is ideal for applications requiring high weld quality, tight seams, and minimal thermal distortion.
The top-down clamping system applies a precisely controlled joining force from above, ensuring uniform pressure distribution and stable contact between the joining partners. This improves weld quality and process consistency, especially for complex components.
The EVO 0800-TD achieves short cycle times through efficient process design and fast laser processing. The EVO 0800-TD-2 variant further increases productivity by welding two assemblies in parallel, reducing non-productive time and increasing output.
Yes, the module is designed for seamless integration into automated systems. Its drag-and-drop integration concept, compact design, and standardized interfaces make it easy to implement in existing production environments.
