EVO 0800-TD-SA
Stand-Alone Solution for Flexible Laser Plastic Welding

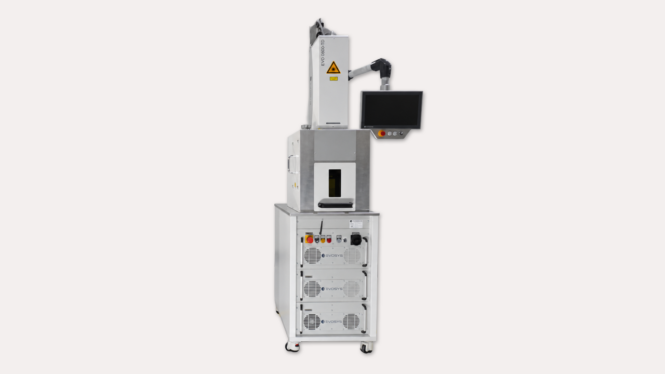

The EVO 0800-TD-SA combines the proven EVO 0800-TD process module with a stand-alone kit, creating a compact solution for laser plastic welding without the need for integration into a separate production system. The module features a top-down clamping unit and integrated process control for melt travel, laser power and clamping force.
The stand-alone kit includes a housing for the 19-inch racks, a base plate, laser safety housing and a sliding mechanism for efficient loading and unloading. A start button enables direct operation at the system, while an optional monitor provides an additional user interface. The safety housing turns the system into a Class 1 laser solution for safe operation in a production environment.
Frequently Asked Questions
The EVO 0800-TD is designed as a process module for integration into a production system. The EVO 0800-TD-SA combines this process module with a stand-alone kit including a base plate, housing for the 19-inch racks, laser safety housing and a sliding mechanism, enabling it to be operated as an independent welding solution.
No. The stand-alone kit enables the EVO 0800-TD-SA to be used as an independent system. This makes it suitable for applications where integration into a separate machine or automated production line is not required.
The EVO 0800-TD-SA features a sliding mechanism that provides access to the welding area for efficient manual loading and unloading of components.
The EVO 0800-TD-SA provides process control for melt travel, laser power and clamping force. Optional features include temperature control, a force measuring system and tool coding.
